The Maibec Aluminum Panel Series (MAA) stands out for its innovative design that combines speed and ease of installation.
Made up of pre-painted aluminum rails and panels, it allows for efficient implementation: the rails are first attached to the wall, making it easy and precise to insert the panels afterward.
Advantages that make all the difference, from the ground up to the final touches.
Get a quote tailored to your needs
Explore this product
MAA Aluminum Panel: Extruded Aluminum
Profile features
The MAA aluminum panel stands out with its refined design and installs on rails for a clean finish with no visible fasteners. Available in specified dimensions, up to a maximum of 4′ x 8′.
Available Finishes
High definition printing
(Textures & colors)
Panel - Front and back view
Panel Installation
Explore our opaque finishes available in a variety of shades.
Aluminum composite sheets, with a slim and aesthetic perimeter extrusion, without visible fasteners or rivets, used to slide into fastening strips in a tongue & groove manner.
Specially formulated primer coat assures optimal adhesion between aluminum and ink.
High-definition digital inkjet print of a wide range of textures with outstanding color variations.
A protective clear coat is applied to provide long-term protection against fading.
Panels
Starter/Finishing Strip
Horizontal and vertical double fastening strip
Joints

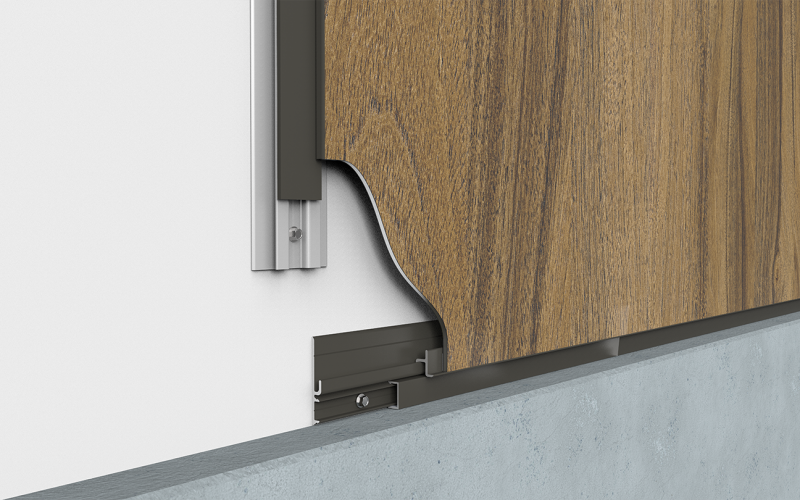

The Maibec system, made up of rails and panels, allows for quick and easy installation. The factory pre-painted extrusions are first mounted to the wall, making panel insertion simple. The system includes four components.
The panels, featuring a 0.75″ (1.9 cm) projection and spacing, are available in specified dimensions, up to a maximum of 4′ x 8′. The spacing between panels is predetermined at 0.75″ (19.05 mm). A finishing strip facilitates on-site cutting and installation. They come with a protective film, and other dimensions may be available upon request.
Aluminum extrusion with clippable screw cover strip, painted to match joint color.
One-piece aluminum extrusion designed for horizontal or vertical panel installation. Features an integrated screw cover for a clean finish and discreet fastening.
Joint available in Charcoal color.
Other colors are conditionally available on request.
Realism at its finest.
Maibec Architectural’s assembled panels seamlessly blend into projects across the commercial, industrial, and institutional sectors.
