With its high-definition printing technology we can precisely replicate any image, colour, or materials, such as wood, stone, marble, or quartz. Solid-coloured planks are also available.
Efficiency, durability: Maibec manufactures siding and accessories made from high-quality materials.
Get a quote tailored to your needs.
Explore our different profiles

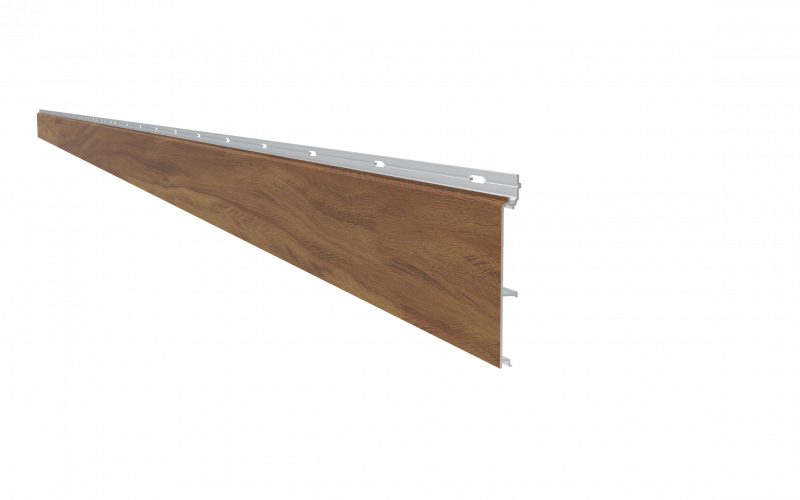

F-Profile plank is available in 4, 6, or 8 inch height and a standard length of 16 feet.
Profile features
The flat profile in aluminum siding offers a linear, uniform surface that enhances precision and consistency in commercial and institutional projects. Its geometry reduces light distortion and minimizes joint visibility, creating a stable and refined appearance. The smooth surface supports low-maintenance performance by limiting debris accumulation. It also provides an ideal base for high-definition texture reproduction, allowing wood grain or metallic finishes to appear more realistic. Suitable for vertical and horizontal installation, it contributes to durable, high-quality architectural results.
Available finishes
High-definition printing
(Textures & colours)
Electrostatic powder coating (Solid colours)
16-foot plank
Flat plank junction (F)

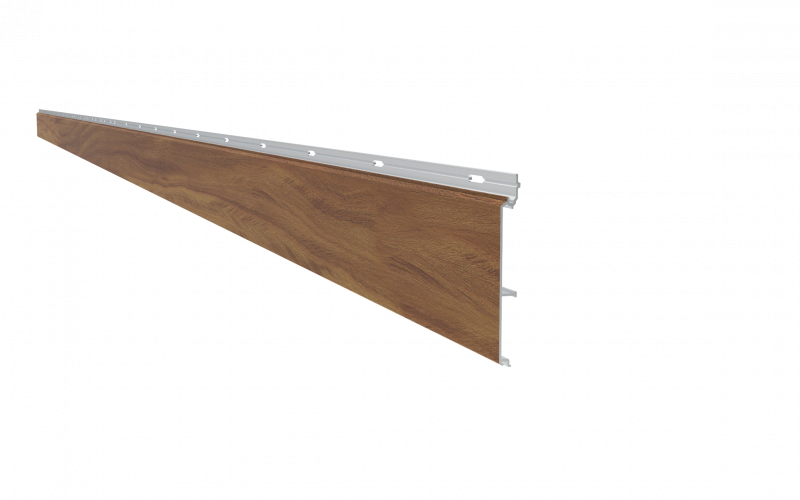

V-Profile plank is available in 3, 4, or 6 inch height and a standard length of 16 feet.
Profile features
The V profile offers a lightweight and efficient solution, while maintaining the same quick-fastening and interlocking compatibility advantages as our other profiles. It also highlights the transition between the planks to create a more realistic wood appearance.
Available finishes
High-definition printing
(Textures & colors)
Electrostatic powder coating (Solid colors)
16-foot plank

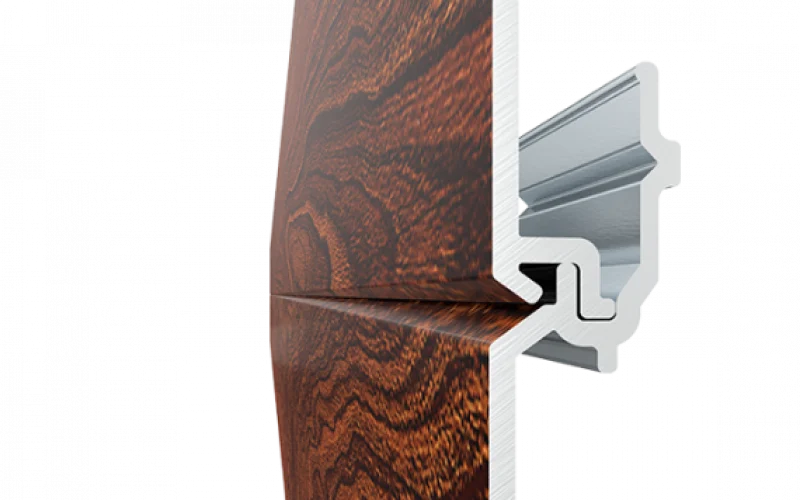

V Groove plank junction (V)

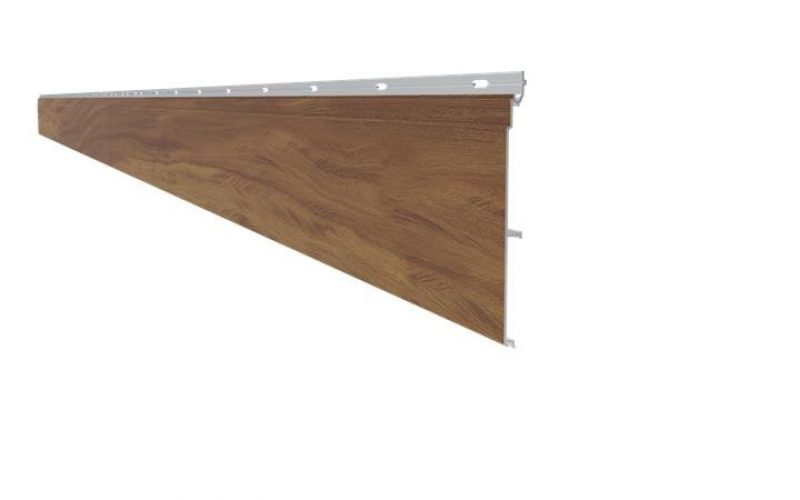

C-Profile plank is available in a 6 inch height and a standard length of 16 feet.
Profile features
The C profile is distinguished by its geometric configuration, often used for architectural details or applications requiring a more linear and aesthetic finish. It also highlights the transition between the planks to create a more realistic wood appearance.
Available finishes
High-definition printing
(Textures & colors)
Electrostatic powder coating (Solid colors)
16-foot plank

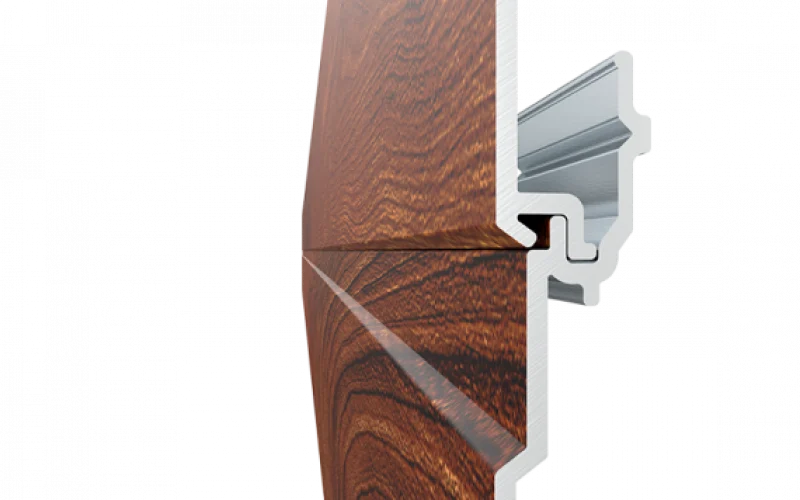

Channel plank junction (C)
4″, 6″ VENTED PLANK

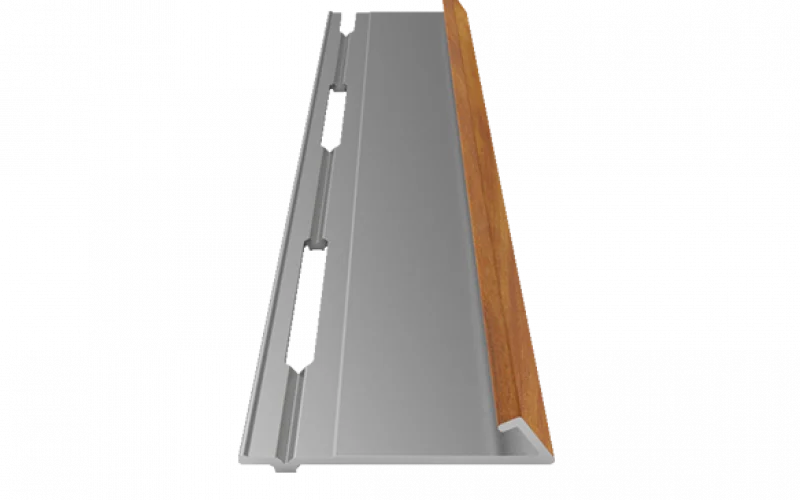

STARTER STRIP
OUTSIDE CORNER
J-TRIM 1″
J-TRIM 1 ¾ ''
H-TRIM
Our extruded aluminum planks come with a complete range of accessories designed for professional installation and harmonious finishing.
They match perfectly with the textures and colours of the planks. Available individually, they simplify ordering and ensure aesthetic continuity, whether the installation is horizontal or vertical.

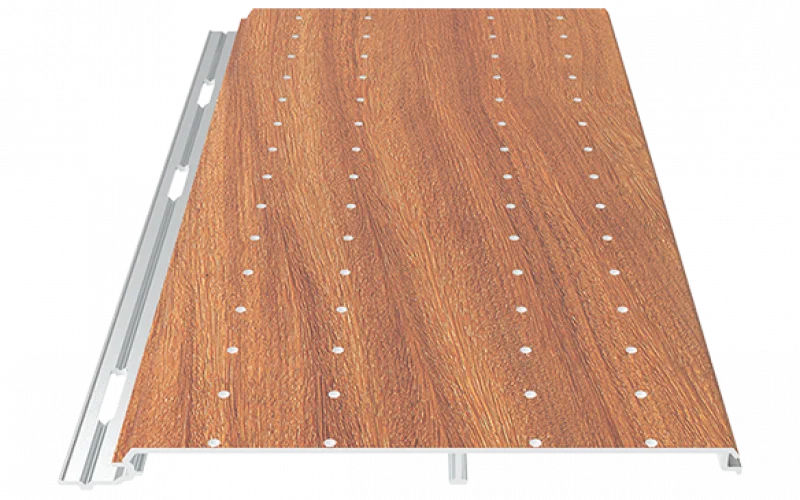

Used to ensure ventilation in certain applications such as soffits. Maintains the aesthetic of the planks while allowing air circulation.
Starter strip used to start the installation of the planks. Ensures straight and stable alignment from the first row.

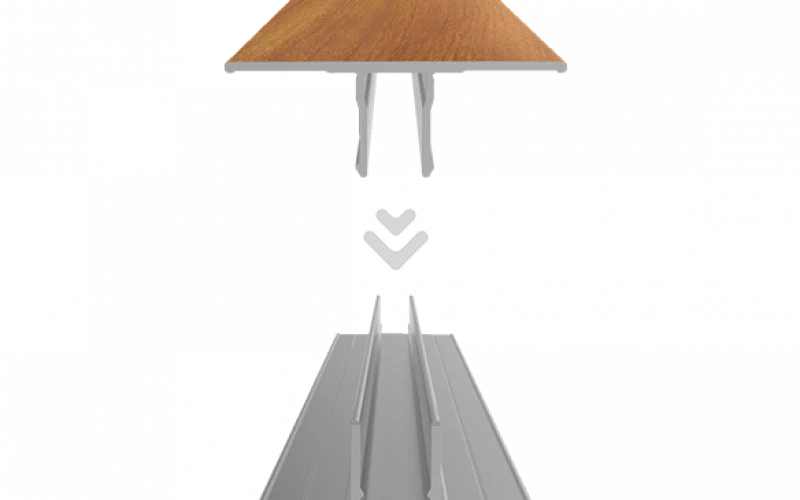

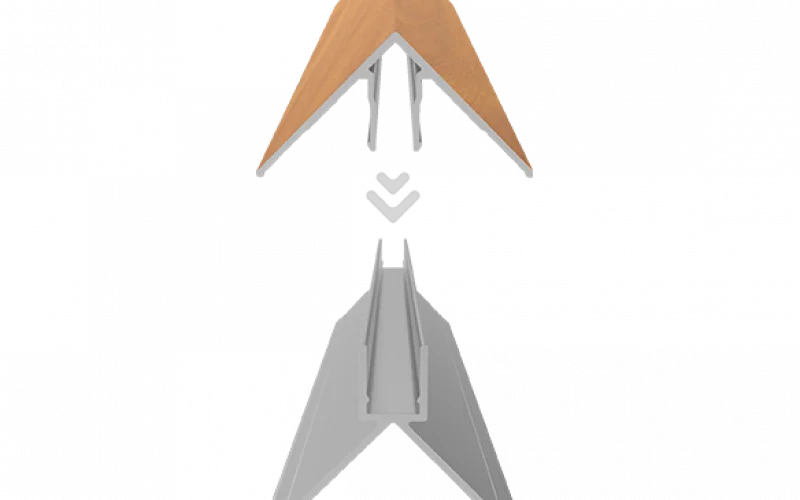

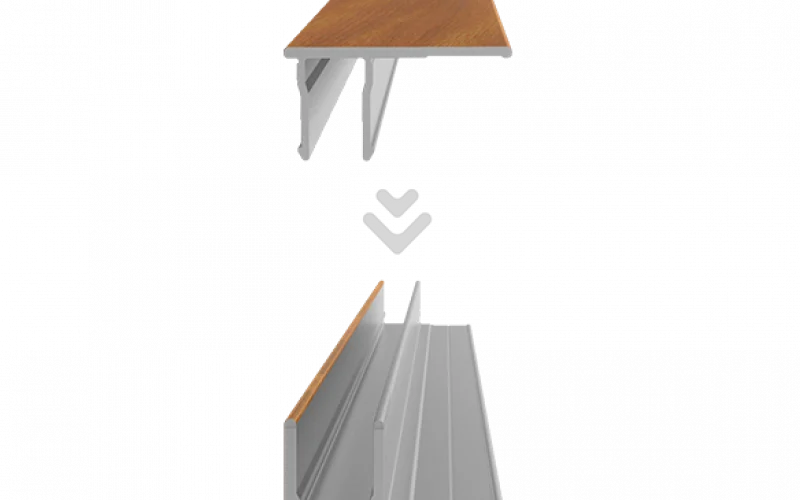

Finishing element for outside corners. Composed of two pieces that interlock with a clip system, allowing installation without visible screws. Ensures a clean and continuous finish both horizontally and vertically.
J”-shaped trim used to frame the ends of planks, particularly around doors, windows or soffits. Available in two widths to accommodate different aesthetic or technical needs.

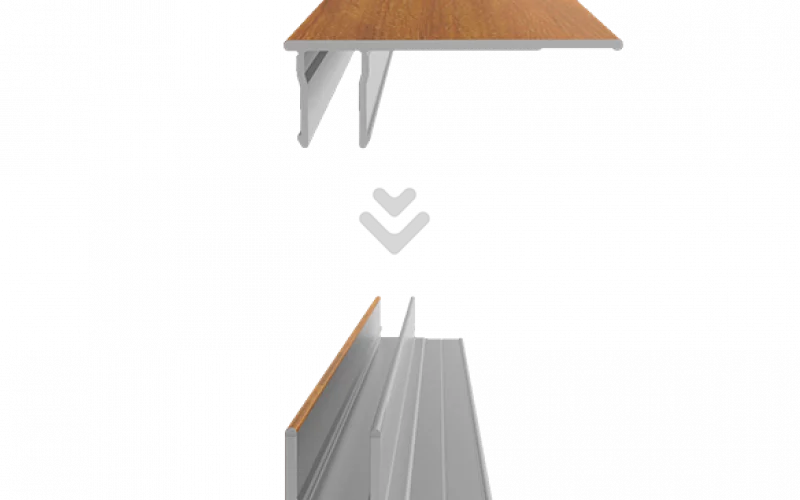

Used to join two planks end to end. Ideal for long surfaces or discreet transitions between panels.
MAE extruded aluminum planks undergo a series of rigorous tests that validate their performance, durability and compliance with industry requirements.
Fire resistance: CAN/ULC S102 & S114, ASTM E84, NFPA 285
Coating adhesion: ASTM D3359
Graffiti resistance: ASTM D6578
UV resistance: ASTM G155
Salt spray resistance: ASTM G85
Abrasion resistance: ASTM D4060 (CS-17)
Wind load resistance: ISO 7895, ASTM E330, ASTM E1592
Florida Building Code (FBC)
LEED credit contribution
*Consult our technical sheets to know which certifications apply specifically to each product.
Consult the documentation section to view all documents, technical data sheets and assembly methods.

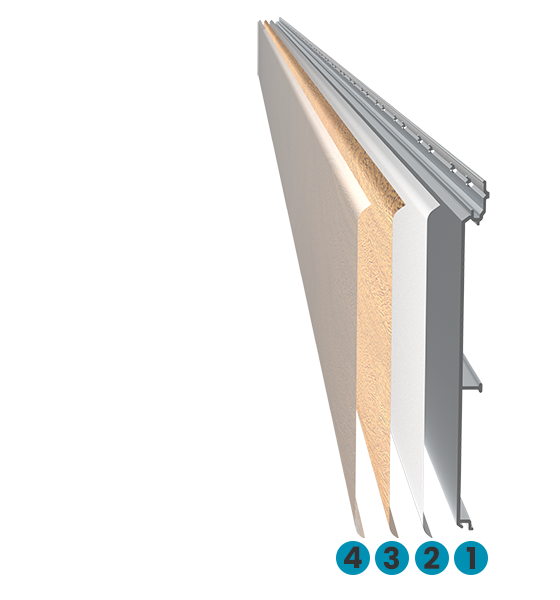

Recognized as the industry’s first choice for exceptional durability. Rugged extruded aluminum.
A coat of white primer is applied to ensure adhesion between aluminum and ink, in compliance with ASTM D3359 and AAMA 2604 standards.
High-definition digital inkjet printing of various textures with impressive colour variations.
Application of a clear coat for long-lasting protection against discoloration.
Maibec accurately reproduces materials such as wood or stone using high-definition digital inkjet print technology. Each texture is scanned from the original material for exceptional realism, protected by a durable finish layer.
This technology also allows for the creation of customized designs tailored to architectural projects.
Our advanced facility includes equipment to apply eco-conscious and high-performance powder coatings.
Beyond being an alternative to liquid paint, our powder coating process provides comparable durability, resistance, and versatility with environmental advantages including elimination of volatile organic compounds (VOC), chromium-free treatment, and 99% powder residue recovery. Liquid paint is also available upon request.
Order your samples now.

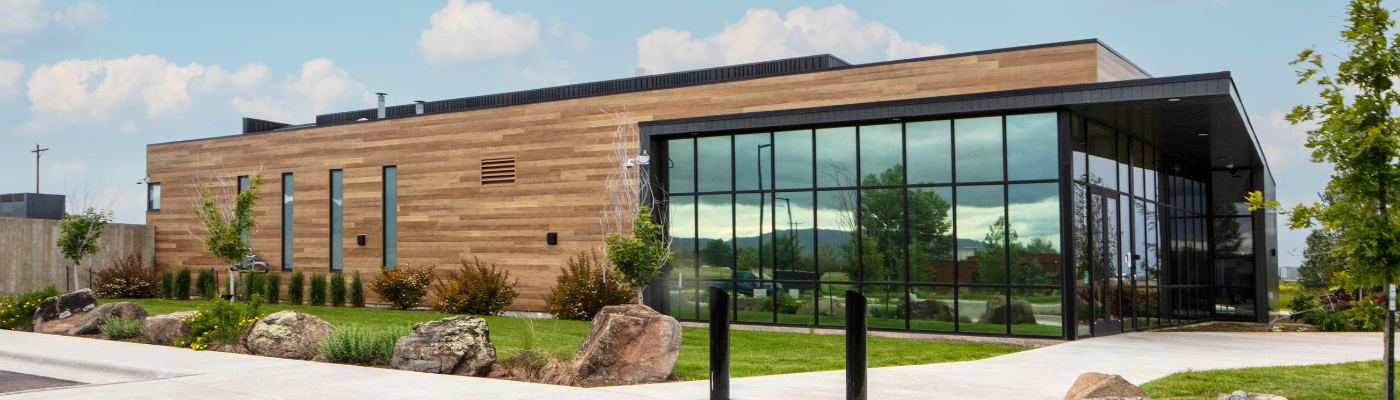

Maibec Architectural’s aluminum planks seamlessly blend into projects accross the commercial, industrial and residential sectors.
