Advantages that make all the difference, from the ground up to the final touches.
Explore the different models
Available in nominal widths of 2″ [51 mm] 3″ [76 mm] 4″ [102 mm] 5″ [127 mm] 6″ [152 mm] and 8″ [203 mm].
Standard lengths of 8′ [2.4 m] 12′ [3.7 m] and 16′ [4.9 m]
Standard thicknesses of 1″, 1″ 1/2 and 2″.

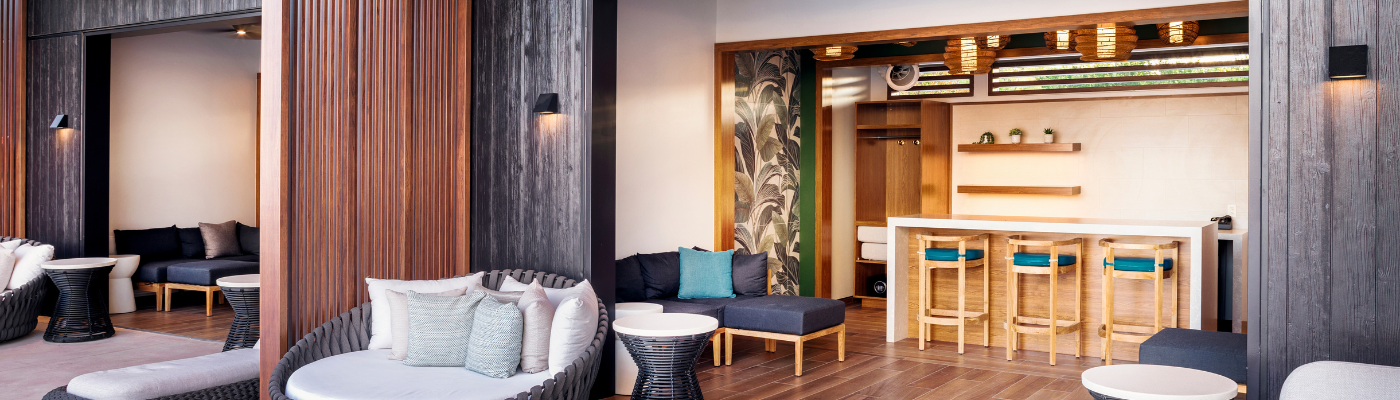

Battens can be used in many ways: attached to the ceiling, wall, floor, to create privacy screens or simply installed on a facade to accent your architectural project. Other widths are available upon request to suit all your projects.
For added convenience, battens can be pre-assembled at the factory, ensuring safe and fast installation on site while guaranteeing uniform quality of the final result.
Span chart available upon request.
Available finishes
High-definition printing
(Textures & colors)
Battens
Width, thickness & weight chart
CC Brackets
BC Brackets
SN Brackets
Discover secure and aesthetic fastening solutions designed to meet your most common installation needs.
Designed in aluminum 6063-T6 with a RAL 7022 matte finish, this bracket is compatible with 1″, 1 ½″ and 2″ battens. It offers a versatile fastening solution for your wall, floor or ceiling installations.
Designed in aluminum A380 with a RAL 7022 matte finish, this bracket is compatible with 1″, 1 ½″ and 2″ battens. It offers a versatile fastening solution for your wall, floor or ceiling installations.
Designed in aluminum 6063-T6 with a RAL 7022 matte finish, this bracket is compatible with 1″, 1 ½″ and 2″ battens. It offers a specialized fastening solution for your vertical and ceiling installations.
MAA assembled battens undergo a series of rigorous tests that validate their performance, durability and compliance with industry requirements.
Fire resistance : CAN/ULC S102, ASTM E84
Coating adhesion : ASTM D3359
Graffiti resistance: ASTM D6578
Deflection test available upon request
Contributing to LEED credits
*Consult our technical data sheets to know which certifications apply specifically to each product.
Contact us to find out all the details and see how they can meet your needs!
Commercial grade aluminum, fire resistant. Exceptional strength-to-weight ratio, perfect for any type of application.
A coat of white primer is applied to ensure adhesion between aluminum and ink, in compliance with ASTM D3359 and AAMA 2604 standards.
High-definition digital inkjet printing of various textures with impressive color variations.
Application of a clear coat for long-lasting protection against discoloration.
Available for our extruded plank (MAE) series and assembled panels and battens (MAA), this technology offers customizable textures and colors that reproduce various finishes, from woodgrain to contemporary materials and artwork reproductions.
To minimize repetitive patterns, we provide 72 unique square feet of texture variation, ensuring a natural appearance across the building facade. The printed surfaces include a primer coating that meets AAMA 2604 standards.
Let’s bring your vision to life together, contact us today!
Maibec Architectural Aluminum exterior cladding blends perfectly with architectural projects in the commercial, industrial and residential sectors.
