Siding panel for drained and back ventilated rainscreen systems
Advantages that make all the difference, from the ground up to the final touches.
Get a quote tailored to your needs.
Explore our different series
MAP-01 Aluminum Plate: Over Extrusion Panel
Series Features

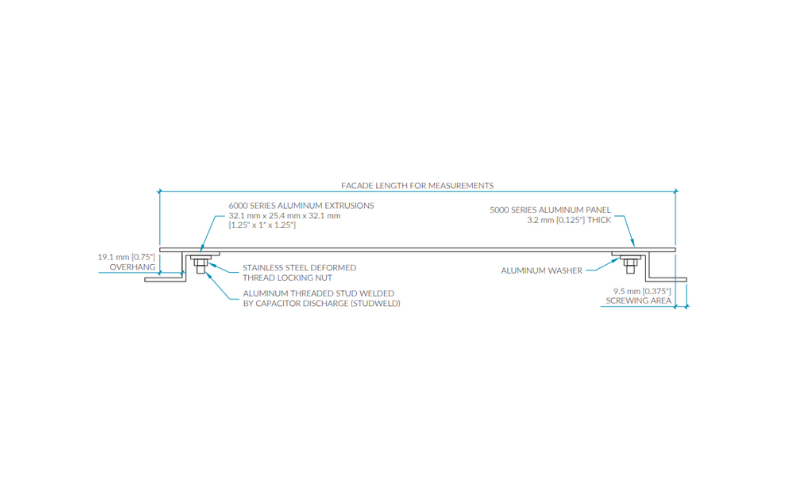

The MAP-01 panel, made from durable aluminum, is known for its floating appearance. It’s available with or without concealed fasteners. Entirely built out of 3.2 mm (0.125”) sheets of high quality, durable 5000 series aluminum. It is also equipped with 3.2 mm (0.125”) 6000 series aluminum perimeter extrusions. Available in rectangular formats up to 1473.2 mm x 3606.8 mm (58″ x 142″) and square formats up to 1473.2 mm x 1473.2 mm (58″ x 58″).
Performance criteria
Avalaible Finishes
Solid colours
MAP-01 Aluminum Plate Over Extrusion Panel
Additional specifications
MAP-02 Aluminum: Folded Panel with Clip System
Series Features
Boasting the reliability of durable construction, the MAP-02 clip system with concealed fastener is the perfect choice for intricate design. Its thermal expansion-enhanced brackets make it the ultimate go-to solution. The MA-02 is a cutting-edge architectural aluminum panel crafted from premium 5000-series aluminum sheets, each measuring 3.2 mm in thickness. Available in rectangular formats up to 1397 mm x 3531 mm (55″ x 140″) and square formats up to 1397 mm x 1397 mm (55″ x 55″).
Performance criteria
Available Finishes
Solid colours
MAP-02 Aluminum Folded Panel with Clip System
Additional specifications
MAP-03 Aluminum: Box-Style Panel
Series Features
MAP-03 is a panel built out of high quality, durable 5000 series aluminum, folded from 3.2 mm (0.125”) sheets and recognized for its box effect. Speed and ease of installation make it a great choice for cost-centric projects. Available in rectangular formats up to 1397 mm x 3530.6 mm (55″ x 139″) and square formats up to 1397 mm x 1397 mm (55″ x 55″).
Performance criteria
Available Finishes
Solid colours
MAP-03 Aluminum Box-Style Panel
Additional specifications

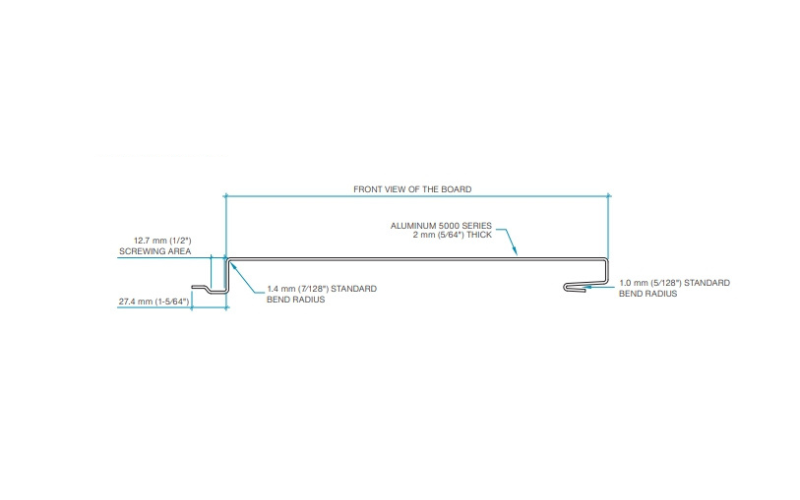

MAP-12 and MAP-16 Aluminum Architectural Boards
Series Features

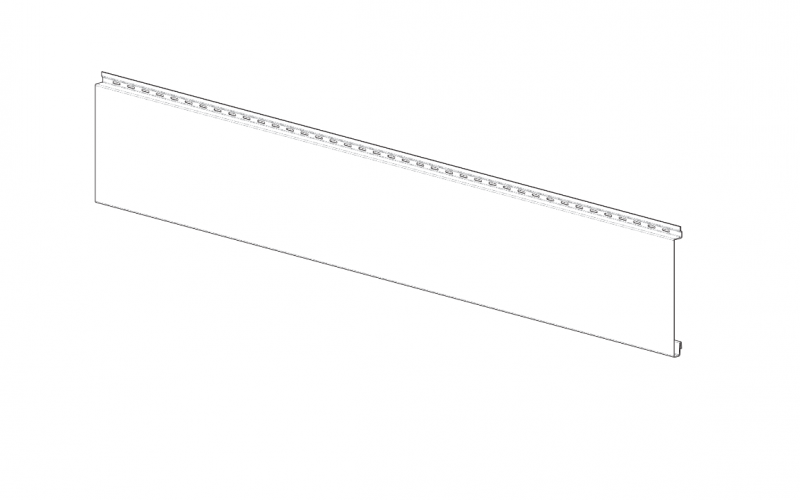

MAP-12 and MAP-16 architectural boards are made from durable 5000 series aluminum with a thickness of 2 mm (0.078 in) and can be installed either vertically or horizontally. They feature an interlocking system that simplifies installation. Bending is performed by our state-of-the-art robotic assembly line, with the option for pre-drilling before the electrostatic powder coating stage. Available in heights of 304.8 mm (12″) for MAP-12 and 406.4 mm (16″) for MAP-16, with lengths up to 3632.2 mm (143″). Other dimensions available upon request.
Performance criteria
Available Finishes
Solid colours
MAP-12 and MAP-16 Aluminum
Architectural Boards
Additional specifications
Maibec Aluminum Panels undergo a series of rigorous tests that validate their performance, durability and compliance with industry requirements.
*Please refer to our technical data sheets to determine which certifications apply to each panel product, allowing you to select the material best suited to your needs.

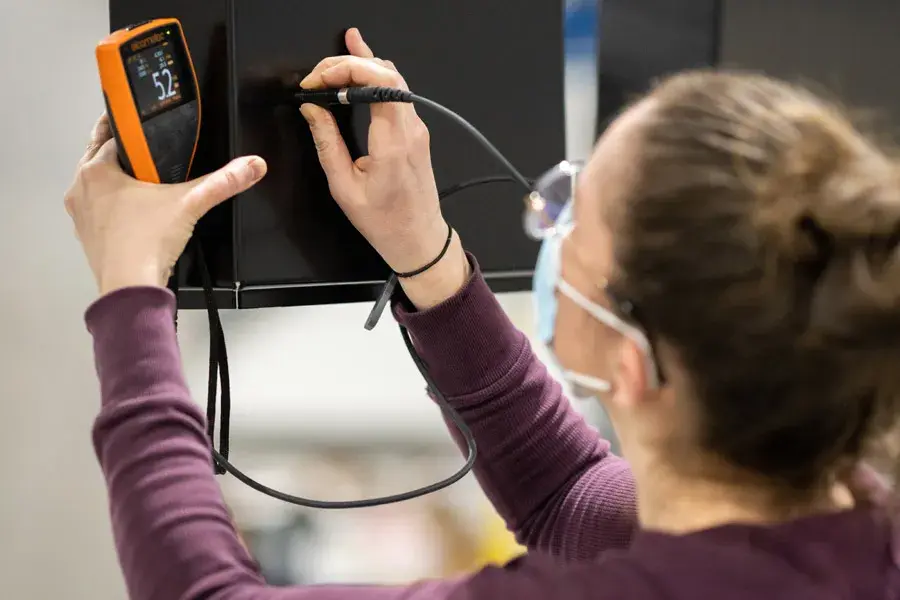

By bringing powder coating in-house as a certified AAMA 2604-2605 applicator, we maintain full quality control throughout the entire production process while reducing lead times associated with external suppliers. Our electrostatic powder coating line delivers consistent, eco-friendly finishes on high-performing aluminum siding.
Our process begins with a thorough two-step cleaning to eliminate all impurities, followed by two deep rinses to ensure optimal purity. The preparation is completed with the application of a zirconium conversion coating, creating a strong, corrosion-resistant base ideal for coating adhesion.
Our panels are made entirely from premium 5000 series aluminum, known for its strength, lightweight properties, and corrosion resistance, even in demanding environments.
Unlike conventional approaches that pair 3000 series aluminum with liquid paint, our powder coating process complements the properties of 5000 series aluminum, delivering enhanced durability while maintaining an eco-friendly manufacturing process.
Our commitment to quality is reflected in the protection we offer. We provide comprehensive coverage for both the painted finish and the 5000 series aluminum substrate, demonstrating our confidence in the long-term durability of our products.
Our electrostatic powder coating process, applied in our factory using state-of-the-art equipment, ensures better quality control and eliminates delays caused by outsourcing. Free of VOCs and hexavalent chromium, this eco-friendly option exceeds AAMA 2604 and 2605 standards.
Whether you are looking for an anodized look, a special effect or specific colour matching, our partners customize their powder and liquid coatings to fit any colour. Working with the most recognized colour charts in the industry, our partners can seamlessly create custom colours for any project.
Explore our finishes and order your samples now.

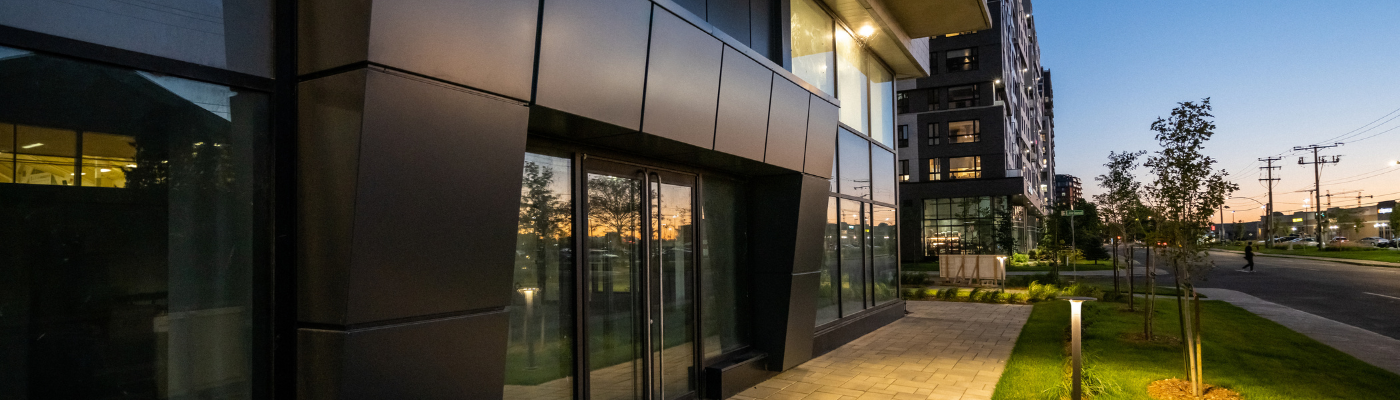

Maibec Architectural’s aluminum panels seamlessly blend into projects across the commercial, industrial, and institutional sectors.
